More than 60% of recent broadband deployments in metropolitan U.S. projects now specify fiber-to-the-home. This fast transition toward full-fiber networks underscores the urgent need for reliable production equipment.
Compact Fiber Unit
Fiber Draw Tower
Fiber Secondary Coating Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable manufacturing line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines as well as control systems. This system manufactures drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
That high-performance FTTH cable making machinery delivers measurable business value. It offers higher throughput and consistent optical performance featuring low attenuation. This system additionally complies with IEC 60794 as well as ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services cover installation as well as operator training.
This FTTH cable line output line package contains fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. This line additionally adds SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control together with power specs often rely on Siemens PLC using HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model provides on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. This system also provides lifetime technical support and operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
This fiber optic cable line output process for FTTH requires precise control at every stage. Cable makers use integrated lines that combine drawing, coating, stranding, as well as sheathing. That method boosts yield and speeds up market entry. This system addresses the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment shapes product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering together with extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

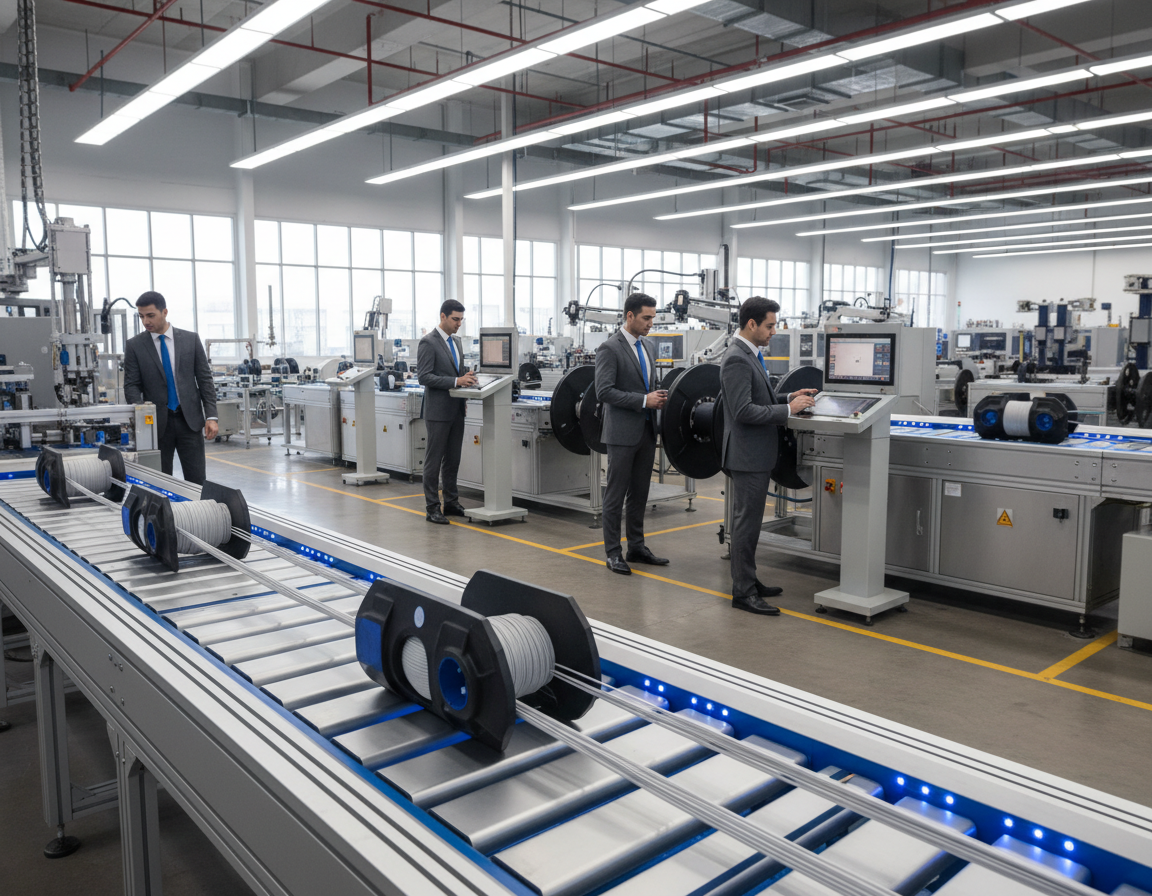

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing together with extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs as well as UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics as well as modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable manufacturing and lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing as well as water cooling accelerate profile stabilization while reducing energy employ. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, as well as aging data.
| Operation | Typical Unit | Benefit |
|---|---|---|
| Optical fiber drawing | Automated draw tower with tension feedback | Uniform core size and low attenuation |
| Fiber secondary coating | Dual-layer UV curing coaters | Uniform 250 µm coating for durability |
| Identification coloring | Multi-channel coloring machine | Reliable color identification for field work |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | PE, PVC, or LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape or wire armoring units | Improved outdoor mechanical protection |
| Cooling & curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Inline testing | Real-time attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment as well as modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable production as well as positions companies to deliver on scale together with output quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter as well as mechanical strength. This line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, as well as surface output quality. It protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable line output must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This helps when fibers are prepared for connectorization.
Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens together with water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron deliver robust control together with monitoring for continuous runs.
Operational parameters shape preventive maintenance as well as process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation together with curing speeds are adjusted to material type as well as coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable together with supports reliable fast-cycle fiber optic cable line output.
Fiber Draw Tower And Optical Preform Handling
This fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback as well as tension management. That prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable production process. Current towers log metrics for traceability as well as rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-output fiber optic cable line output while maintaining ISO-level consistency checks.
| System Feature | Function | Target Value |
|---|---|---|
| Multi-zone furnace | Even preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Live diameter control | Preserve core/cladding geometry and lower attenuation | ±0.5 μm tolerance |
| Cooling and tension control | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Automated pay-off integration | Secure handoff to secondary coating and coloring | Synced feed rates for zero-slip transfer |
| Integrated online testing stations | Validate attenuation, tensile strength, geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness as well as boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Producers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend together with axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement as well as armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
This combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line offers a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity as well as mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, together with sensors detect color discrepancies, poor saturation, together with coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, together with onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling together with centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement together with controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension as well as wrapping geometry. That method benefits armored fiber cable production by preventing compression of fiber elements. It further keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring using downstream sheathing as well as extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable line output machine must handle pay-off reels sized for reinforcement together with align using sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This approach uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment supports accuracy and speed in line output. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, as well as shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit manufacturing focuses on tight tolerances as well as material choice. Extrusion together with buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls together with speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration featuring sheathing together with testing stations support bespoke high-speed fiber cable line output line requirements.
| Production Feature | Ribbon Line | Compact Fiber System | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | Up to 800 m/min | Typically up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Consistent geometry and lower insertion loss |
| Materials | Specialized tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Quality testing | Inline attenuation and geometry checks | Dimensional control and tension monitoring | Fewer field failures and quicker deployment |
| Integration | Sheathing and splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
How To Optimize High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush together with aging cycles. These tests verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. Such support reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, together with ribbon units. It additionally incorporates sheathing, armoring, and automated testing for consistent fast-cycle fiber manufacturing. A complete fiber optic cable production line is designed for FTTH together with data center markets. This system enhances throughput, keeps losses low, as well as maintains tight tolerances.
For United States manufacturers and system integrators, partnering using reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co deliver integrated solutions. These systems simplify automated fiber optic cable manufacturing together with reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs as well as turnkey proposals, and schedule engineer commissioning as well as operator training.
